UVA UV Radiation Sensor Flame Detection , Ultraviolet Detection Sensor GT-ABC-L

Brand Name : YJJ

Model Number : GT-ABC-L

Place of Origin : CHINA

MOQ : 5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1501/pcs/pre

Delivery Time : 3-5work days

Packaging Details : Tubes of

Material : gallium nitride base material

Test conditions : broadband UVA+UVB+UVC photodiode

Principle : Operating in photovoltaic mode

Packaging : TO - 46

Test range : Good visible blindness

Contact Now

Product Description:

GT-ABC-L Flame DetectionUVA Ultraviolet Detection Sensor

Features:

Spectral characteristics (25 ºC)

Wavelength of peak responsivisity λmax 355 nm

Peak responsivisity (at 355 nm) Rmax 0.18 A/W

Spectral response range - 220~370 nm

UV/visible rejection ratio (Rmax/R400 nm) VB >103 -

General characteristics (25 ºC)

Chip size A 1 mm2

Dark current (1 V reverse bias) Id <1 nA

Capacitance (at 0 V and 1 MHz) C 23 pF

Temperature coefficient Tc -0.1 %/ºC

Maximum ratings

Operation temperature range Topt -28~85 ºC

Storage temperature range Tstor -40~85 ºC

Soldering temperature (3 s) Tsold 260 ºC

Reverse voltage VRmax 10 V

Specifications:

Specifications	Parameters
Peak wavelength	355NM
Light sensitivity	0.18A/W
Rise time	3US
Test conditions	typical values, Ta=25°

UVA UV Radiation Sensor Flame Detection , Ultraviolet Detection Sensor GT-ABC-L

Product Tags:

UV Radiation Sensor Flame Detection

UVA UV Radiation Sensor

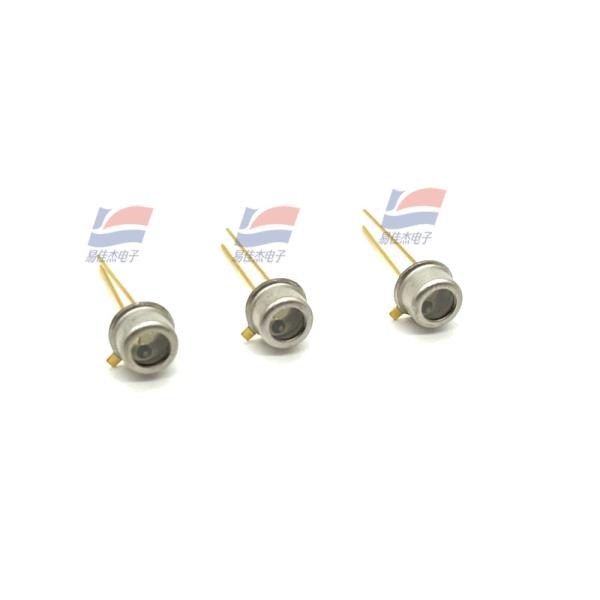

UVA UV Radiation Sensor Flame Detection , Ultraviolet Detection Sensor GT-ABC-L Images
